Pipe Fittings

Stainless Steel Pipe Fittings


Stainless Steel Pipe Fittings Range

1.Specification: ASTM A182 / A403 & ASME SA182 / SA403
2.Grades: 201, 202, 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
3.Type: Seamless / Welded / Fabricated
4.Bending Radius: R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
5.Range: ½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS.
6.Dimensions: ANSI/ASME B16.9, B16.28, MSS-SP-43.

Seamless/Welded Radiography Tested

Products Size
Stainless Steel Elbows – Long Radius Stainless Steel Stub Ends Sizes 1/2″ – 48″
Stainless Steel Elbows – Short Radius Stainless Steel Crosses
Stainless Steel Reducing Elbows Stainless Steel Reducing Crosses
Stainless Steel 45° Elbows Stainless Steel 180° LR Return Bends
Stainless Steel Tees Stainless Steel 180° SR Return Bends
SS Equal Tees Stainless Steel Pipe Bends / Piggable Bends
Stainless Steel Reducers Stainless Steel Couplings
Stainless Steel Concentric Reducers Stainless Steel Pipe Nipples
Stainless Steel Eccentric Reducers Stainless Steel Forged/Plate Cut Rings
Stainless Steel 3D Elbow Stainless Steel End Caps
Stainless Steel 5D Elbow Stainless Steel Forged / Plate Circles

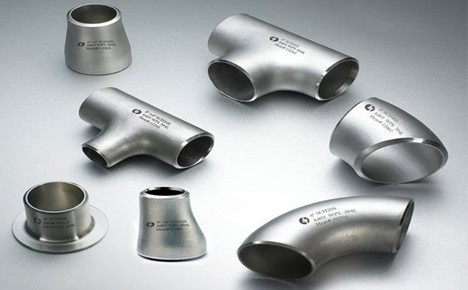

Alloy Steel Pipe Fittings


Alloy Steel Pipe Fittings Production Range

1. Grades Chrome Moly Grades P1, P5, P9, P11, P22, P91
2.Specification A/SA234 WP1, WP5, WP9, WP11, WP22, WP91 | A/SA182 F1, F5, F9, F11, F22, F91
3.Type Seamless / Welded / Fabricated / Forged
4. Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
5. Range ½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS.
6.Dimensions ANSI/ASME B16.9, B16.28, MSS-SP-43.

Seamless/Welded Radiography Tested

Products Size
Alloy Steel Elbows – Long Radius Alloy Steel Stub Ends Sizes 1/2″ – 48″
Alloy Steel Elbows – Short Radius Alloy Steel Crosses
Alloy Steel Reducing Elbows Alloy Steel Reducing Crosses
Alloy Steel 45° Elbows Alloy Steel 180° LR Return Bends
Alloy Steel Tees Alloy Steel 180° SR Return Bends
Alloy Equal Tees Alloy Steel Pipe Bends / Piggable Bends
Alloy Steel Reducers Alloy Steel Couplings
Alloy Steel Concentric Reducers Alloy Steel Pipe Nipples
Alloy Steel Eccentric Reducers Alloy Steel Forged/Plate Cut Rings
Alloy Steel 3D Elbow Alloy Steel End Caps
Alloy Steel 5D Elbow Alloy Steel Forged / Plate Circles

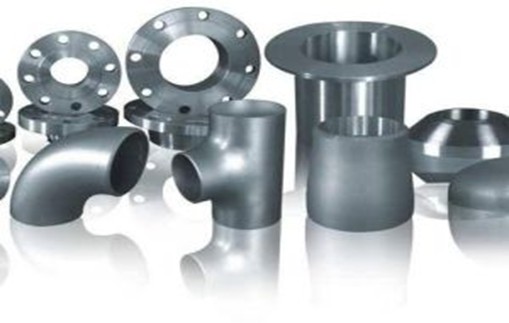

Mild Steel Pipe Fittings


Seamless/Welded Radiography Tested

Standard API 5L
Sizes 16'OD TO 54' OD (8 MM TO 50 MM THK)
Outer Diameter : 219.1mm – 4064mm (8" – 160")
Wall Thickness : 3.2 mm – 40mm (SCH5, SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS)
Lengths : Single Random, Double Random or as per Custom Requirement
Surface Finishes : FBE, FBE Dual, 3LPE, 3LPP, Coal Tar, Bare, Oiled, Mill Varnish, Galv, Concrete Coating and Tape Wrap, single-layer/double-layer FBE, 2PE, 3PE,3PP and other anti-corrosion coatings with the performed standards such as DIN30670, DIN30671,DIN30678,CAN/CSA-Z245.21-M92,SY/T4013-2002 and SY/T0315-97 etc.
End Finishes Beveled, Square Cut, Threaded & Coupled
